CAPABILITIES

Turning CNC - 2 Axis

One - Mori Seiki SL 0 (Max Turn Dia. 6”) (Max Turn Length 6”)

Turning CNC - 4 Axis

One - Mori Seiki NL 1500Y (Max Turn Dia. 14.4”) (Max Turn Length 20.0”)
Live Tooling, Y Axis Milling, Tailstock

One - Mori Seiki NL 2000SY/500 (Max Turn Dia. 14.4”) (Max Turn Length 20.0”)
Live Tooling, Sub Spindle, Y Axis Milling

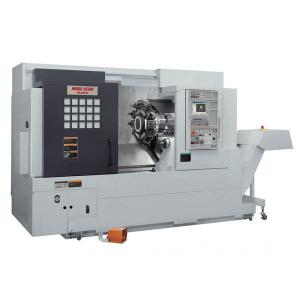

Four - Mori Seiki NL 2500SY/700 (Max Turn Dia. 14.4”) (Max Turn Length 27.0”)
Live Tooling, Sub Spindle, Y Axis Milling

One - Mori Seiki NL 2500SY/700 (Max Turn Dia. 14.4”) (Max Turn Length 27.0”) with Fanuc Robotic/Automated Loading Arm
Live Tooling, Sub Spindle, Y Axis Milling

One - Mori Seiki NL 2500SY/1250 (Max Turn Dia. 14.4”) (Max Turn Length 51.0”)
Live Tooling, Sub Spindle, Y Axis Milling

One - Mori Seiki NLX 4000BY/1500 (Max Turn Dia. 24”) (Max Turn Length 60.0”)
Live Tooling, Y Axis Milling, Tailstock, Steady Rest

Turning Manual

Four - Manual lathes complete with readouts and tooling (Max Turn Dia. 16.0”) (Turn Length 60.0”)

Swiss Type Turning

One - Hanwha XD26H (Max Turn Dia. 1.0”) 7 Cutting Axes, Live Tooling

Horizontal Milling CNC – 4 Axis

Two – Mori Seiki NH 4000 Horizontal (X axis 22.0”) (Y axis 22.0”) (Z axis 24.8”) 14,000 RPM, Pallet Set-up Station

One - Mori NH Seiki 4000 Horizontal (X axis 22.0”) (Y axis 22.0”) (Z axis 24.8”) 14,000 RPM, 6 Station Linear Pallet Pool

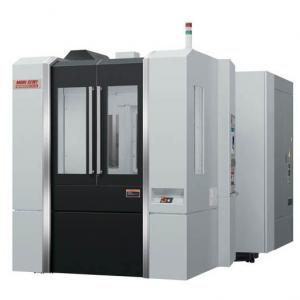

Two – Mori Seiki NH 5000 Horizontal (X axis 28.7”) (Y axis 28.7”) (Z axis 33.5”) 14,000 RPM, 6 Station Linear Pallet Pool

Vertical Milling CNC – 5 Axis

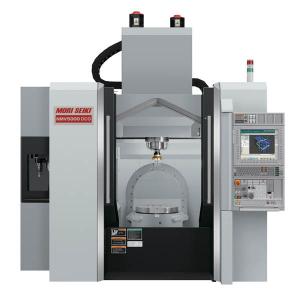

One - Mori Seiki NMV 5000 DCG (X axis 28.7”) (Y axis 20.1”) (Z axis 20.1”) 20,000 RPM, 6 Station Linear Pallet Pool.

One - Mori Seiki NMV 1500 DCG (X axis 16.5”) (Y axis 8.3”) (Z axis 15.7”) 60,000 RPM, 96 Station Linear Pallet Pool

One - DMG DMU50 (X axis 19.6”) (Y axis 17.72") (Z axis 15.74”) 18,000 RPM

Vertical Milling CNC – 3 Axis

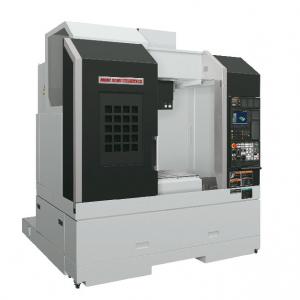

One - Mori Seiki Dura 5080 Vertical (X axis 30.0”) (Y axis 20.0”) (Z axis 20.0”)

One - Mori Seiki MV 40E Vertical (X axis 20.0”) (Y axis 16.0”) (Z axis 20.0”)

One - Mazak Nexus 510C Vertical (X axis 41.0”) (Y axis 20.0”) (Z axis 20.0”)

Knee Mills with 2 or 3 Axis CNC Controls

One - Lagun CNC 2-axis (X axis 30.0”) (Y axis 16.0”) (Z axis 16.0”)

Two - Sharp CNC 3-axis (X axis 30.0”) (Y axis 16.0”) (Z axis 16.0”)

EDM CNC

One - Sodick AQ 325L Wire 5 Axis (X axis 13.7”) (Y Axis 9.8”) (Z Axis 8.8”) (U-V 3” X 3”)

One - Sodick AQ 537 Wire 5 Axis (X axis 22.4”) (Y Axis 14.5”) (Z Axis 13.8”) (U-V 4.7” X 4.7”)

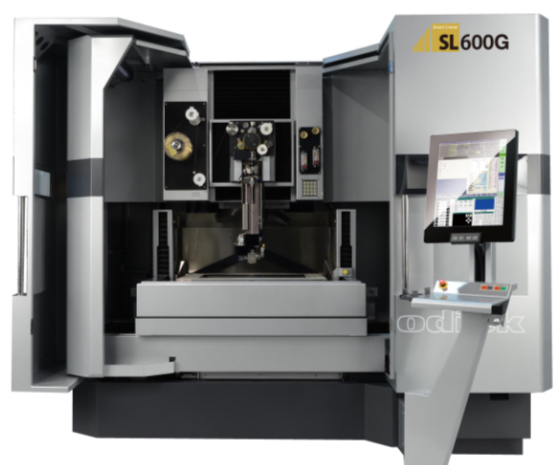

One - Sodick SL 600G Wire 5 Axis (X axis 23.6”) (Y Axis 15.75”) (Z Axis 13.8”) (U-V 5.91” X 5.91”)

Manual Grinding

One - Acer 1020AHD (X Axis 10.0”) (Y Axis 20.0”) (Z Axis 10.0”)

Welding

Metal Inert Gas (MIG)

Gas Tungsten Arc (TIG)

Metal Sawing

Manual Vertical and Horizontal

Two - Automated Horizontal (16” diameter capacity)

Machine Programming Software
Mastercam -14 Seats

Calypso - 2 Seats

Esprit - 3 Seats

NL2500SY-700-turn-mill-machine_t

NH5000-dcg-horizontal-milling-machine_t

NMV5000-DCG-machine-tool_t

vertical-machining-center-DuraVertical-5080_t

aq537lFULL1

SODICK SL600G

MastercamX9Logo

Contact us today with your RFQ, drawing or resume801-886-2755
